Polar Plot for Emirates Team New Zealand vs. Luna Rossa Challenge:

Average Speed-Over-Ground (SOG) at True-Wind-Angle (TWA)

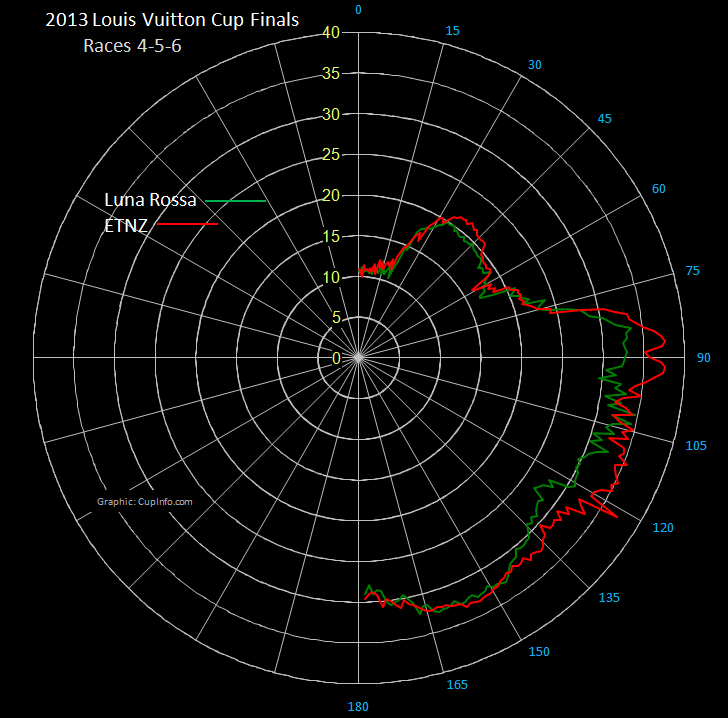

Polar Plot for Emirates Team New Zealand and Luna Rossa Challenge:

The plot above shows simple average boat speed at true wind angles based on Races 4, 5, and 6 of the 2013 Louis Vuitton Cup Final.  Boat speed in knots is plotted as distance from the center (marked in the yellow numbers) and true wind angle is plotted as degrees from the vertical (marked in the blue numbers).  Zero degrees, straight up on the plot, is straight into the wind. 180 degrees, straight down on the plot, is directly downwind.

Over the three LVC Finals races sailed in full by the two boats, ETNZ released 23,000 data points and LunaRossa over 25,000.  Wind strength was medium, with 82% of race time in the 12-16 knot range.

ETNZ showed higher speed upwind, downwind, and during the reaching legs (TWA between 85 and 120 degrees), when her advantage is greatest.

back to top



Luna Rossa-ETNZ-Oracle Team USA Polars:

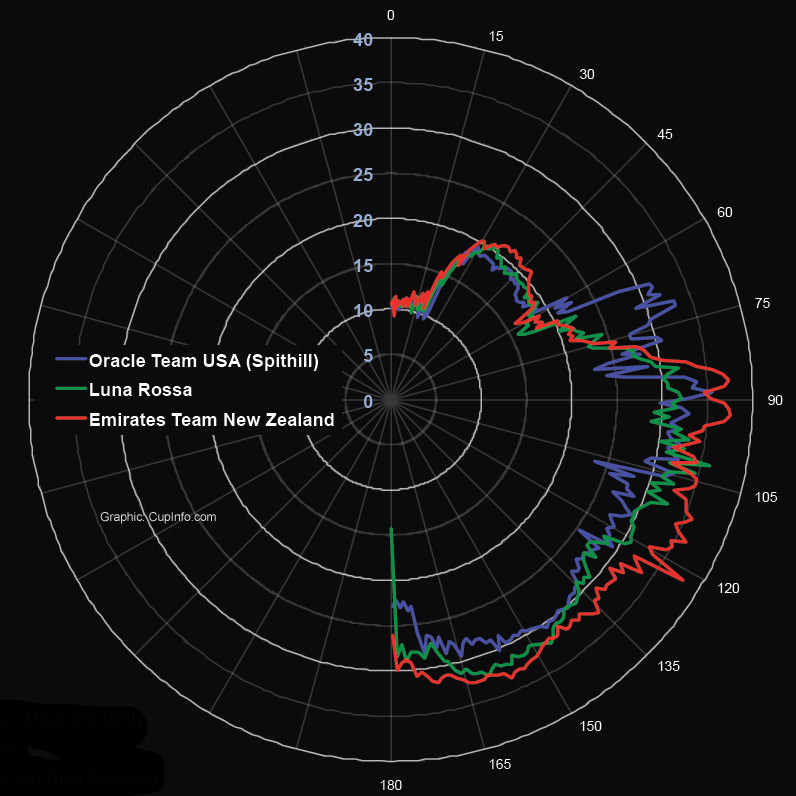

SOG: Average Boat Speed (SOG) at True-Wind-Angle (TWA):


SOG comparison within the 10-15 knot wind range only, based on availability of comparable data from all boats.

Oracle Team USA data was recorded in the Defender's Practice Race.

back to top

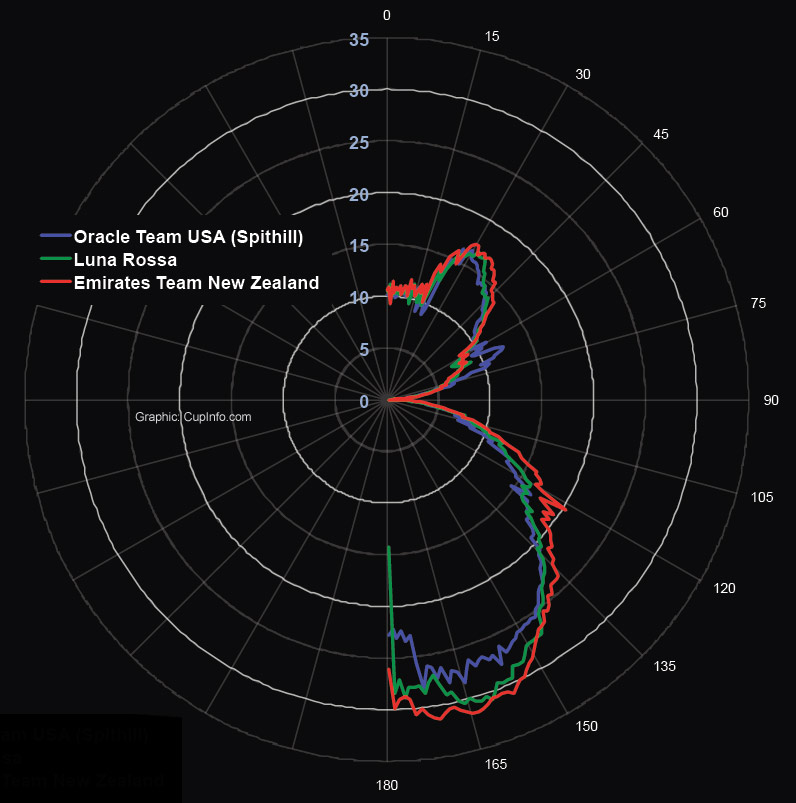

VMG: Velocity Made Good (VMG) at True-Wind-Angle (TWA):


SOG comparison within the 10-15 knot wind range only, based on availability of comparable data from all boats.

Velocity Made Good (VMG) is calculated in this case as the direct upwind or downwind component of velocity, depending on leg of the race course.
